Size:11-78mm
Material:HT1、N、S
Introduction

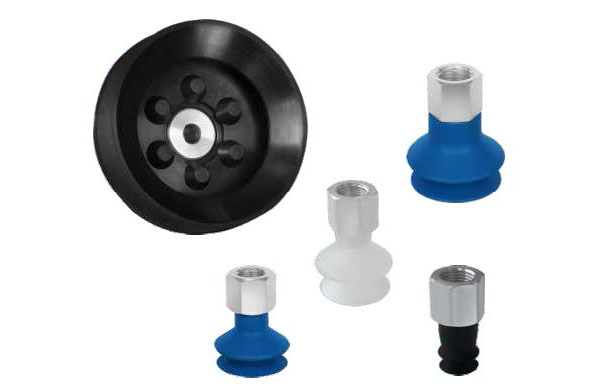

- 1.5-fold bellows suction cup
- Optional special materials with high temperature resistance
- Applicable to handling high-temperature workpieces
- Joints can be reused so that costs to customers are reduced
- Applicable to workpieces of different sizes and in different shapes
Application
- Handles workpieces with uneven surfaces, such as cartons, cardboards, workpieces with curved surfaces, pipes, etc.
- High-temperature injection-molded parts, metal plates, glass, etc.
- Handles smooth wood boards, smooth steel plates, etc.
Structure
- All suction cup joints are straight joints
- The suction cup with a diameter of no less than 25 mm has a support structure in its bottom
