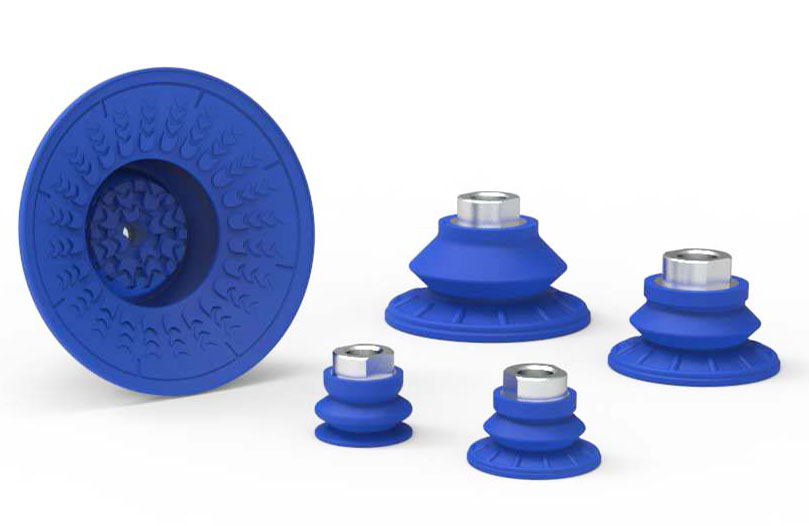

MAB Bellows suction cup for sheet metal (1.5-folds)

Size:30-100mm
Material:N45、N60、HT1

Introduction

• 1.5-fold bellows structure
• Optimum adaptation and sealing to curved workpieces, good damping during placement on workpiece
• Can effectively increase the friction between the suction cup and the workpiece
• Applicable to workpieces of different sizes and in different shapes

Application

• Quickly handles sheet metal in a short cycle time
• No deformation of handled metal sheets or aluminum plates
• Designed special patterns and grooves inside the suction cup can
• prevent sheet metal with greasy surface from skidding sideways
• Handles stamped metal automotive parts

Structure

• Robust and hard-wearing suction cup MAB 1.5 flods is made of the N material with
• sealing lip , special designed in grooves and inner support
• The joint is fixed to the suction cup by vulcanization (with high strength)
• A plurality of optional suction cup connection modes

3D Download

=== Please Choose ===MAB 30 G38-IGMAB 30 M10X1.5-AGMAB 30 M14X1.5-AGMAB 30 RAMAB 40 G14-AGMAB 40 G14-IGMAB 40 G38-IGMAB 40 M10X1.5-AGMAB 40 M14X1.5-AGMAB 40 RAMAB 50 G14-AGMAB 50 G14-IGMAB 50 G38-IGMAB 50 M10X1.5-AGMAB 50 M14X1.5-AGMAB 50 RAMAB 60 G14-AGMAB 60 G14-IGMAB 60 G38-IGMAB 60 M10X1.5-AGMAB 60 M14X1.5-AGMAB 60 RAMAB 80 G14-AGMAB 80 G14-IGMAB 80 G38-IGMAB 80 M10X1.5-AGMAB 80 M14X1.5-AGMAB 80 RAMAB 100 G14-AGMAB 100 G14-IGMAB 100 G38-IGMAB 100 M10X1.5-AGMAB 100 M14X1.5-AGMAB 100 RA
