Size: 20-120mm
Material: TPE
Introduction
- Extremely adaptable bellows suction cup for optimum suction capacity on sheet metal and car body parts
- Specially structured friction surface for maximum holding force at high accelerations, especially on oily surfaces
- Very good adaptation to different workpiece contours due to high stroke of the suction cup
- Flexible sealing lip seals very well even on curved workpiece surfaces
Application
- High-speed bellows suction cup for best adaptability on curved surfaces
- Handling of workpieces with oily surfaces
- Loading and unloading of CNC metalworking and laser cutting machines
- Handling of sheet metal blanks during destacking
- Handling of workpieces with curved surfaces
Structure

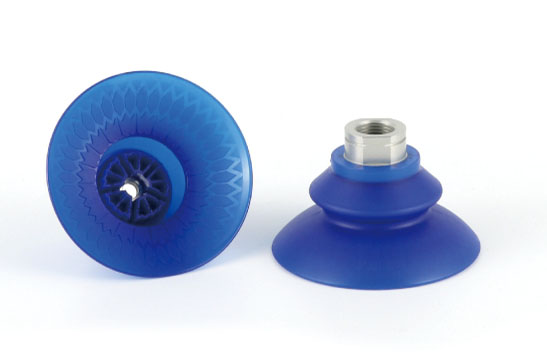

- Round bellows suction cup made of wear resistant material TPE
- Flexible sealing lip with structured friction surface
- Connection nipple made of aluminum positively overmolded
- Available as mounted suction cup with different connection types and wrench flat for easy and quick assembly
