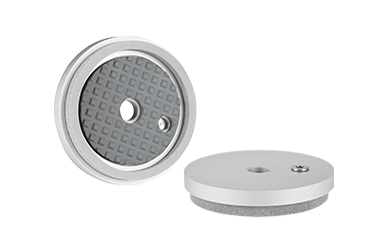

MRP Flat suction cup for workpieces with rough surfaces
SHARE
MODEL MRP
Product Description
flat suction cup
Size:55-250mm
Material:EPDM
Introduction
The sealing ring is made of soft EPDM foam
A large-area internal support structure
Small internal volume
With skid resistance to prevent permanent deformation of thin-walled workpieces
Short operating cycle time
Applicable to workpieces of different sizes and in different shapes
Application
Handles various workpieces with uneven surfaces, such as embossed steel plates,decorative glass, rough slates, wood boards, etc.
When detecting that the product is not in contact with the workpiece, the optional sensitive touch valve can turn off the vacuum chamber to prevent vacuum leakage
Structure
Consists of an EPDM sealing ring and an aluminum holding plate
The sealing ring is securely embedded in the holding plate
Replaceable sealing ring
The rubber pad under the holding plate protects the workpieces form being broken
