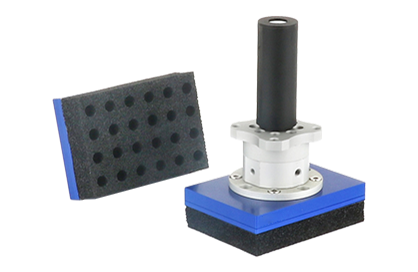

Suction size:90X65mm、200X120mm
Maximum vacuum flow rate:140~650L/min
Introduction
- Handles porous and highly breathable workpieces
- Large vacuum flow
- Vertical and horizontal mounting modes
- Vacuum generator, suction cup and silencer integrated
Application
- Applicable to sticking labels to cylindrical objects, e.g., sticking labels to oil drums, water heaters, etc.
- Applicable to handling PCBs with rough surfaces and equipped with electronic elements, such as mobile phone circuit boards
- Applicable to handling plastic turnover bins with rough surfaces with convexes an concaves, such as electronic element turnover bins, etc.
Structure
(1) Silencing tube
(2) Compressed air inlet
(3) Vacuum port
(4) Orifice plate
(5) Suction surface
