- Compact design
Integrated design of motor, drive, and controller. Compact design with minimum width of only 35 mm. The availability of several installation options ensures simple and quick deployment in a confined space.
- High speed, high efficiency
The use of high-performance servo motor and precise ball screw reduces the movement time on the sliding table and improves the movement efficiency with maximum speed up to 1000 mm/s and maximum acceleration up to 3000 mm/s2.
- High linear accuracy
It is driven by a high-accuracy ball screw. A steel ball is strictly selected to effectively control the clearance of the ball screw so that the high accuracy requirement can be easily met. The positioning repeat-ability can be up to t 0.003 mm.
- High energy density, high load
High rigidity structure design. A high-performance linear guide is used with load capacity leading commercially available competing products. The maximum load in the horizontal direction can reach 15 kg.
- Programmable parameters, a variety of motion modes
The position, speed, and thrust parameters are programmable to implement essential functions of pushing, pulling, pressing, and positioning at high speed. Either the position mode or pushing & pressing mode is available.
- Preferred applications
Lifting in Z-axis/Pushing & pressing in Z-axis/Low-stroke handling and pushing & pressing in X-axis
- Multiple mounting methods
Various mounting holes and optional outlet direction enable horizontal and vertical multi-sided installation for convenient deployment on the production line.
FILE DOWNLOAD

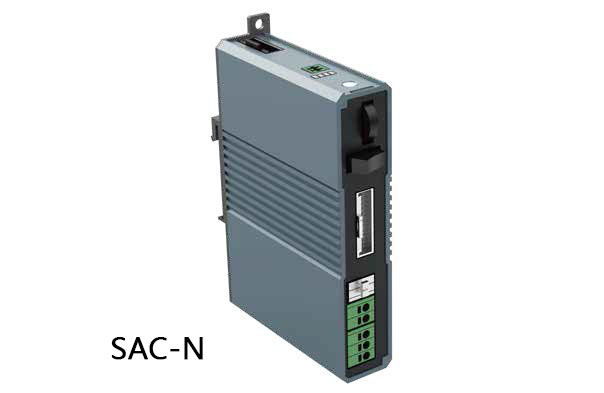

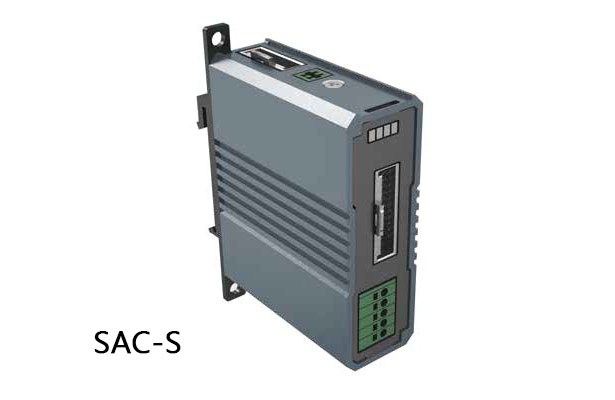

SAC SINGLE AXIS CONTROLLOR Catalog
