Size: 52×25 mm
Material: N、S
Introduction
- Large area rectangular suction surface, very suitable for rectangular workpiece
- Soft and flexible corrugated structure, easy to fit the workpiece with uneven and non-rigid surface
- Flexible, easy to fit the workpiece sealing lip, for irregular and wrinkled surface
- Supporting frame which can be installed in the corrugation, provides the stability of the corrugation of the suction cup
Application
- 2.5 fold rectangular corrugated sucker is suitable for handling rectangular packaging
- materials with irregular surface
- Suitable for carrying film packaging, plastic bags and easily folded packaging
- Suitable for handling non-rigid workpieces and packaging materials that may be deformed during handling
- According to the actual situation, the supporting frame can be selected
Structure

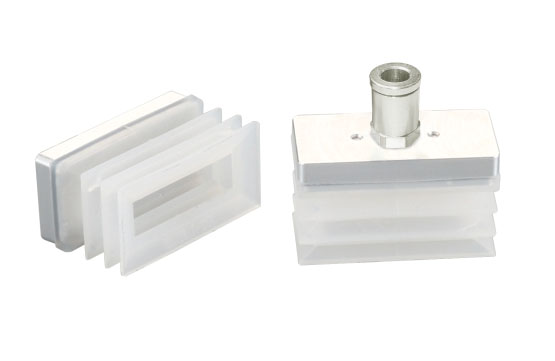

- Rectangular bellows suction cup FGB-R with single sealing lip, consisting of suction cup FGB-R and connection plates
- Very adaptable geometry and soft, flexible sealing lip
- Suction cup is securely clamped between connection plates; screw connection of the cup side permits simple, in-situ replacement of cup
- Supporting frames (available as accessories) can optionally be mounted in one or more of the corrugations
