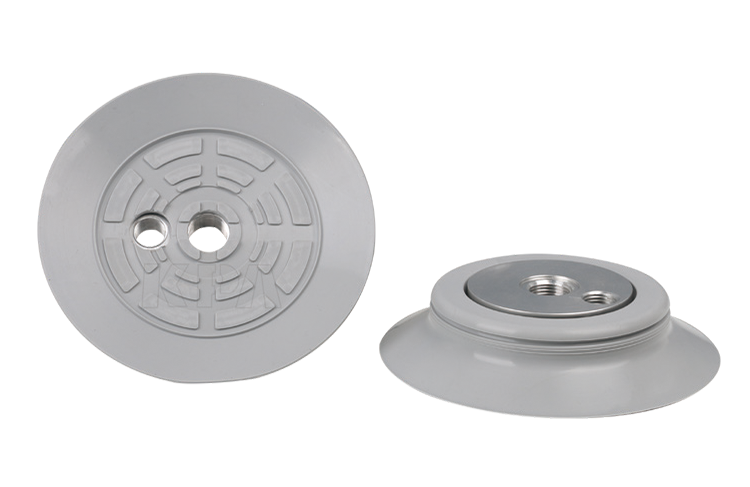

Diameter: 100 to 400 mm
Material: NBR, SI
Supporting plate made of aluminum
Applications
- Round suction plate for handling of smooth, flat workpieces
- Series MPU B with thicker sealing lip: handling of workpieces with a slightly rough surface, such as wood or scaly metal sheets
- Series MPU AE with integrated peeling insert: handling of thin metal sheets (approx. 1.0 - 2.5 mm); overcomes the self-adhesion between the sheets
- Series MPU TV with touch valve: deactivation of unused
- suction cups to prevent the entry of unwanted air
Product Highlights
- Support surfaces on the bottom prevent permanent deformation of thin-walled workpieces
- Fastest cycle times thanks to low own volume
- Wide range of diameters for a large selection of different workpieces
- High suction force with small dimensions
