Size:2-120mm
Material:F、HT1、N、GN、S、GS
Introduction
- Handles flat plates with smooth or slightly rough surfaces
- Handles high-temperature workpieces (HT1, S)
- Almost mark-traceless and antistatic when handling of sensitive workpieces (HT1, GN and GS series)
Application
- Applicable to flat plates with smooth or slightly rough surfaces,such as smooth wood boards, smooth steel plates, plastic plates, plywood boards, etc.
- Applicable to handling electronic elements where the anti-static material can effectively prevent static from damaging electronic products

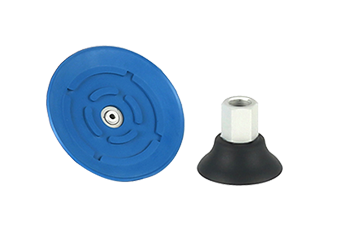

Structure
- Diameter 50mm and below: joint plugged in on cups
- Diameter of 60mm or more: The mounting plate and the suction cup pad are bonded together by vulcanization. The joint screws in directly through thread
3D Download
Catalog Download
PFG round flat suction cup Catalog
