Suction area (Ø) from 10 mm to 80 mm
Applications

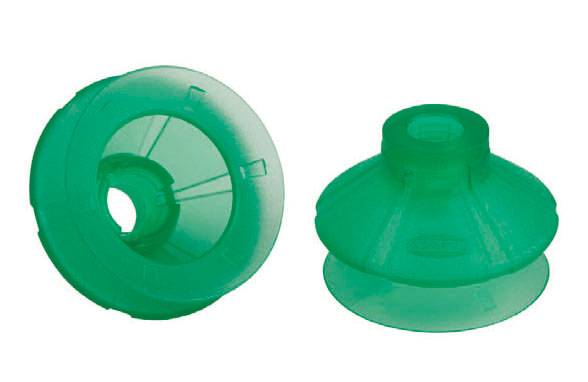

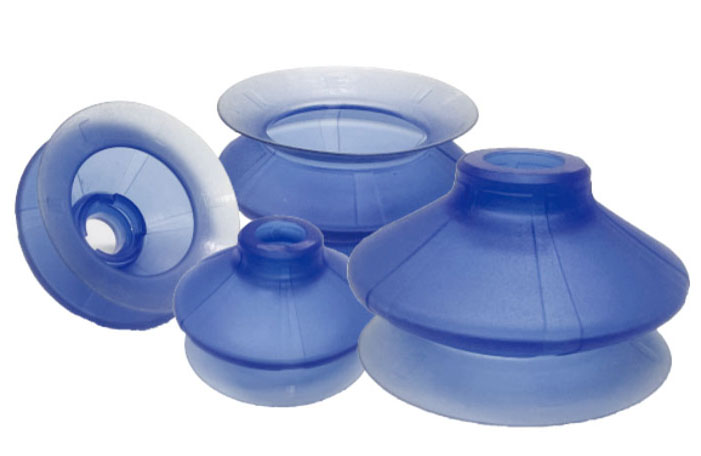

- Round bellows suction cup with 1.5 folds for the use in cardboard box and tray erectors
- Handling of cardboards and rigid packaging in top-loading and side-loading machines
- Palletizing and depalletizing processes
- Heavy-duty applications that require suction cups with excellent sealing and low wear
Product Highlights
- Suction cup seals optimally on cardboard boxes and rigid packaging
- High intrinsic stability of the suction cup in dynamic processes
- Spacing elements between sealing lip and fold prevent the suction cup from moving
- High suction force with small dimensions thanks to large effective suction area
- Material Elastodur ED-65 minimizes wear (service life approx. 3 times higher than with NBR)
