Suction area (Ø) from 15 mm to 50 mm
Applications
- Round bellows suction cup with 2.5 folds for dynamical handling of pouches and other types of very flexible packaging
- Process reliable gripping and handling of pouches containing fluids, solids or powder and packaging that is not very full
- Stable in extremely quick packaging processes, particularly in conjunction with delta robots (case packer and pick-andplace applications)
Design

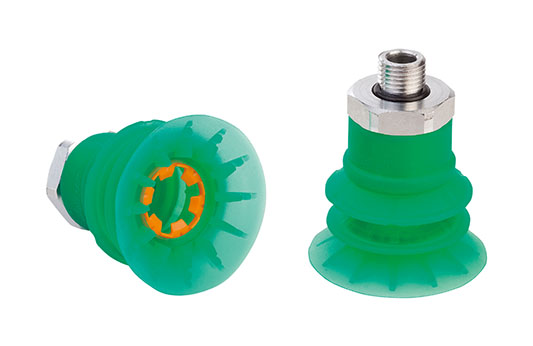

- Bellows suction cup SPB2f with 2.5 folds (3) and a gentle and flexible sealing lip
- with segmented flow vanes and integrated bag stabilizer
- Very large shaft diameter for high volume flow rates
- Specially reinforced suction bellows for additional stability
- Mounting via connection element SC (1); alternatively direct attachment on 3/8”- or 1/2” pipe (4) on the machine side and mounting with a hose clamp
- All connection elements SC with male threads come equipped with an integrated sealing ring
- Optional insert filter for pre-filter (2)
Product Highlights
- FDA compliant silicone SI allows direct food contact
- Integrated bag stabilizer prevents even thin and soft films from being sucked in
- Reinforced main body with 2.5 folds for secure gripping and stability even at high speeds
- Large nominal diameter enables high flow rates for short cycle times
