Suction size:15、20、30、40、50mm
Maximum vacuum flow rate:140~650L/min

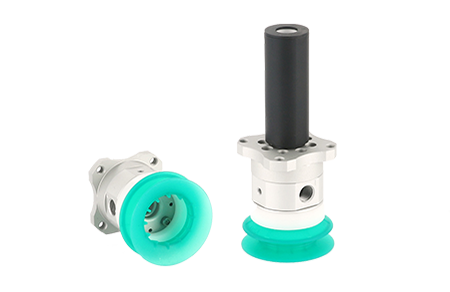

Introduction
- Extremely large vacuum flow
- Generator, suction cup and silencer integrated
- Vertical and horizontal mounting modes
- Static-proof rubber suction cup, gentle contact, strong suction force, workpiece surface protection
- Gentle contact without scratching the workpiece being gripped and handled
- Large vacuum flow appropriate to loose and porous workpieces
- Easy mounting with fittings and elements that can be selected according to the actual operating conditions
- Simple structure, integral design, compressed air connected directly without additional generator
Application
- Applicable to handling breathable workpieces such as PCBs and PVC boards
- Applicable to the food industry, e.g. biscuits, bread, etc.
- Applicable to suctioning irregular profiled workpieces
Structure
(1) Silencing tube
(2) Compressed air inlet
(3) Vacuum port
(4) Connection fastener
(5) Suction surface
