Suction size:40&60mm
Maximum vacuum flow rate:140~650L/min
Introduction
Extremely large vacuum flow
Generator, suction cup and silencer integrated
Vertical and horizontal mounting modes
Suction cup with a porous structure to effectively prevent physical deformation of the workpiece
Large vacuum flow appropriate to loose and porous workpieces Easy mounting with fittings and elements that can be selected according to the actual operating conditions
Simple structure, integral design, compressed air connected directly without additional generator
Application
Applicable to handling light vulnerable workpieces such as mobile phone screen and aluminum foil
Applicable to handling breathable workpieces such as PCBs and PVC boards
Applicable to the textile industry, e.g. carbon fiber fabric

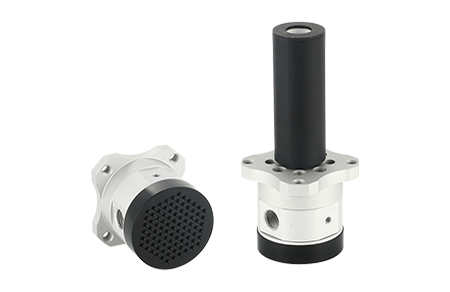

Structure
(1) Silencing tube
(2) Compressed air inlet
(3) Vacuum port
(4) Suction surface
