Introduction
- Large diameter suitable for handling of large heavy vulnerable workpieces
- The soft taper lip seal is highly adaptable to workpieces with curved or uneven surfaces
- The 1.5-fold bellows structure can compensate the workpiece height difference and offer good buffering during contact with the workpiece
- With the support structure in the bottom, the handled workpiece will not be deformed permanently or broken
- The rubber elements and metal connecting plate are integrated
Application
- Handles cartons, metal sheets, wood boards, and glass and ceramic products
- Handles workpieces with uneven surfaces (the soft lip seal has a high adaptability)
Structure

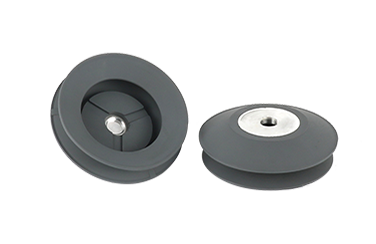

- The FSGPL suction cup has a 1.5-fold bellows structure. The suction cup pad
- is fixed to the aluminum holding plate by vulcanization
- FSGPL bellows suction cup (1.5 folds) A female threaded interface in the aluminum holding plate
- A rubber pad under the holding plate
