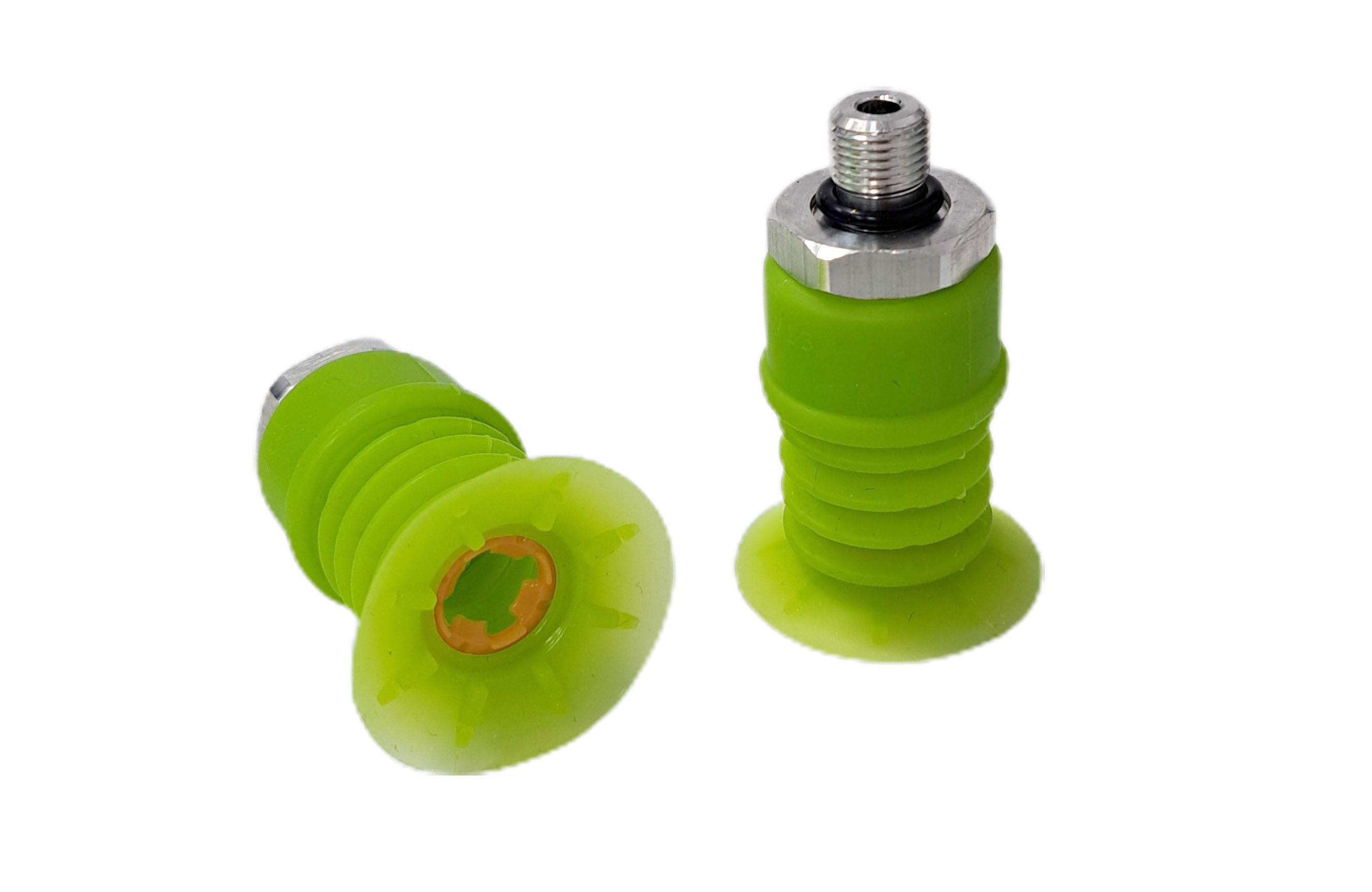

SPB4f Bellows Suction Cups For packaging bags/soft bags /shrink film use

For packaging bags/soft bags/shrink film use
Suction area (Ø) from 30 mm to 50 mm

Applications

• Round bellows suction cup with 4.5 folds for handling pouches and other very flexible packaging
• Process reliable gripping and handling especially of pouches and packaging with low filling degree as well as liquid, solid or powder filled pouches
• Use in fast packaging processes, particularly together with delta robots (case packers and pick-and-place applications)

Product Highlights

• FDA compliant silicone SI allows direct food contact
• Integrated bag stabilizer prevents even thin and soft films from being sucked in
• Reinforced main body and folds for secure gripping under high lateral loads
• Large nominal diameter enables high flow rates for short cycle times
• Extremely flexible sealing lip seals optimally on pouches with strong wrinkling

3D Download

=== Please Choose ===SPB4f 30 SI-55SPB4f 30 SI-55 G14-AGSPB4f 30 SI-55 G14-IGSPB4f 30 SI-55 G18-AGSPB4f 30 SI-55 G18-IGSPB4f 30 SI-55 G38-AGSPB4f 30 SI-55 G38-IGSPB4f 40 SI-55SPB4f 40 SI-55 G14-AGSPB4f 40 SI-55 G14-IGSPB4f 40 SI-55 G18-AGSPB4f 40 SI-55 G18-IGSPB4f 40 SI-55 G38-AGSPB4f 40 SI-55 G38-IGSPB4f 50 SI-55SPB4f 50 SI-55 G12-AGSPB4f 50 SI-55 G12-IGSPB4f 50 SI-55 G14-AGSPB4f 50 SI-55 G14-IGSPB4f 50 SI-55 G18-AGSPB4f 50 SI-55 G18-IGSPB4f 50 SI-55 G38-AGSPB4f 50 SI-55 G38-IG
